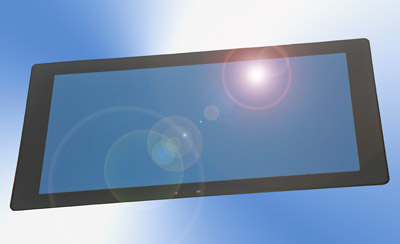

Liquid crystal module inspection

Dr. Schenk's GlassInspect for Liquid Crystal Module (LCM) inspection is an in-line inspection solution for quality assurance and process control for manufacturing of LCMs. Although glass panels for LCMs are inspected in previous production steps, the panels are checked again as a final quality control step when produced for high end applications.

GlassInspect for LCM inspection is used for local defect detection, including for example:

  • Scratch defects
  • Dent defects
  • Bubble defects
  • Inclusion defects
  • Lamination defects
  • Finger print defects
  • Edge chip defects

GlassInspect for liquid crystal module inspection uses Dr. Schenk’s unique MIDA Technology so one defect generates multiple images to deliver the most comprehensive material analysis on the market.

Scratch defect
Scratch defect
Edge chip defect
Edge chip defect
Bubble defect
Finger print defect
Finger print defect
Bubble defect
Inclusion defect
Inclusion defect

Liquid Crystal Module Inspection - Dr. Schenk Solutions at a Glance

Inspection of LCM
Inspection of LCM

GlassInspect for LCM (Liquid Crystal Module)

  • Application: LCM inspection
  • Typical defects: surface defects, lamination defects

>> Download brochures here
