Blown Film Inspection

Blown film inspection

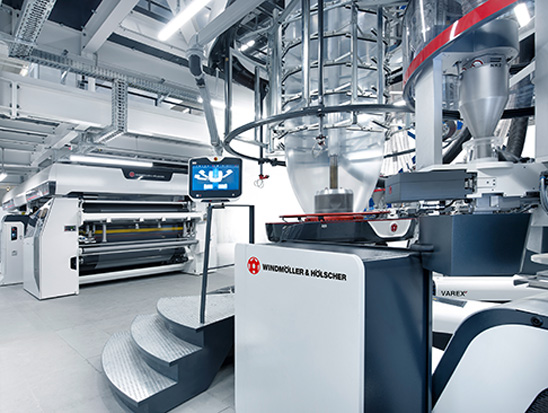

Blown film inspection; image source: Windmöller & Hölscher

EasyInspect for blown film inspection identifies miniscule defects that can occur during the manufacturing process. EasyMeasure monitors the homogeneity of the final product’s properties. The combination with EasyInspect for blown film inspection ensures product quality and optimizes the blown film manufacturing process with just one system.

This technology helps blown film manufacturers and converters to combine the detection of defects with material monitoring. For the first time, EasyMeasure enables the classification of the product quality’s functional level within defect-free material.

EasyInspect for blown film is used for local defect detection, e.g. for:

  • Gels / fish eye detection
  • Air bubble detection
  • Die-line detection
  • Weld-line detection
  • MD scratch detection
  • Carbon speck detection
  • Insect detection
  • Tear detection
  • Melt fracture detection
  • Wrinkle detection (MD and diagonal)

EasyInspect & EasyMeasure for blown film inspection use Dr. Schenk’s unique MIDA Technology to inspect blown film base and converted materials with multiple optical channels on a single scan line. One defect generates multiple images to deliver the most comprehensive material analysis on the market.

Bubble
Die lines
Particle
Wrinkles
Running Defect Map
Defect density map

Typical blown film applications and EasyInspect/EasyMeasure tasks include:

  • Base material inspection for converted products
  • Agricultural film inspection
  • Bags inspection
  • Barrier film inspection
  • Laminated film inspection
  • Packaging film inspection, food wrapping inspection

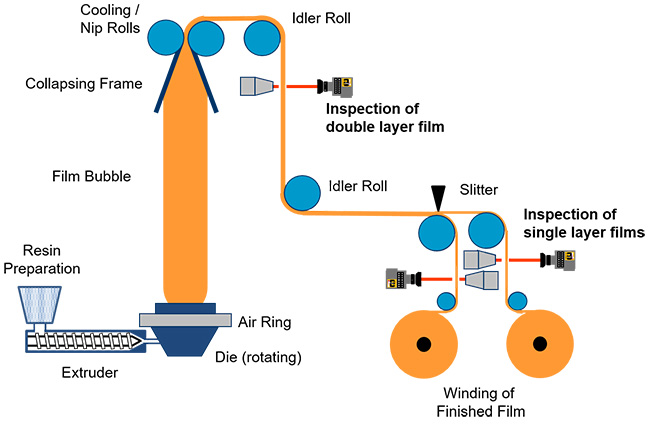

Blown film inspection steps
Blown film inspection steps

EasyMeasure continuously monitors the overall physical properties of the blown film. For example clarity and haze monitor the non-homogeneous mixture of the granulate with the master batch;gloss and reflectance control surface distortions like applesauce, orange peel and shark caused by bad resin, die lip issues or melt fracture among others.


>> Download brochures
